S09 - Automatic Boost Power Module 3-15V Input 3.3V/5V Output S09

1 / 6

Product image

Model

Price Price on request Electronic component prices change quickly with market supply and demand. Please refer to the latest WMSIC quotation for current pricing.

Configuration

12 options

Configuration 9V · 5pcs

Available for RFQ

Send RFQ Contact customer service

Technical data

Product details

11 specifications

Core information

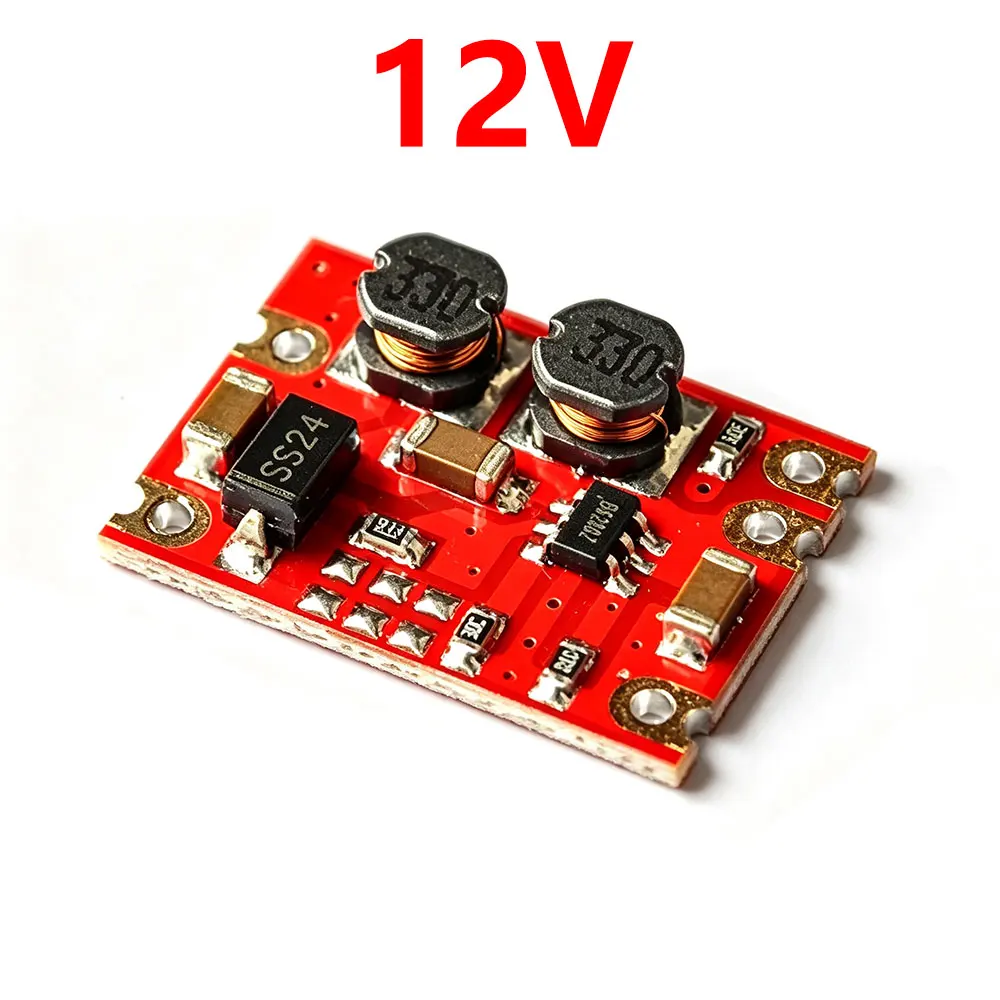

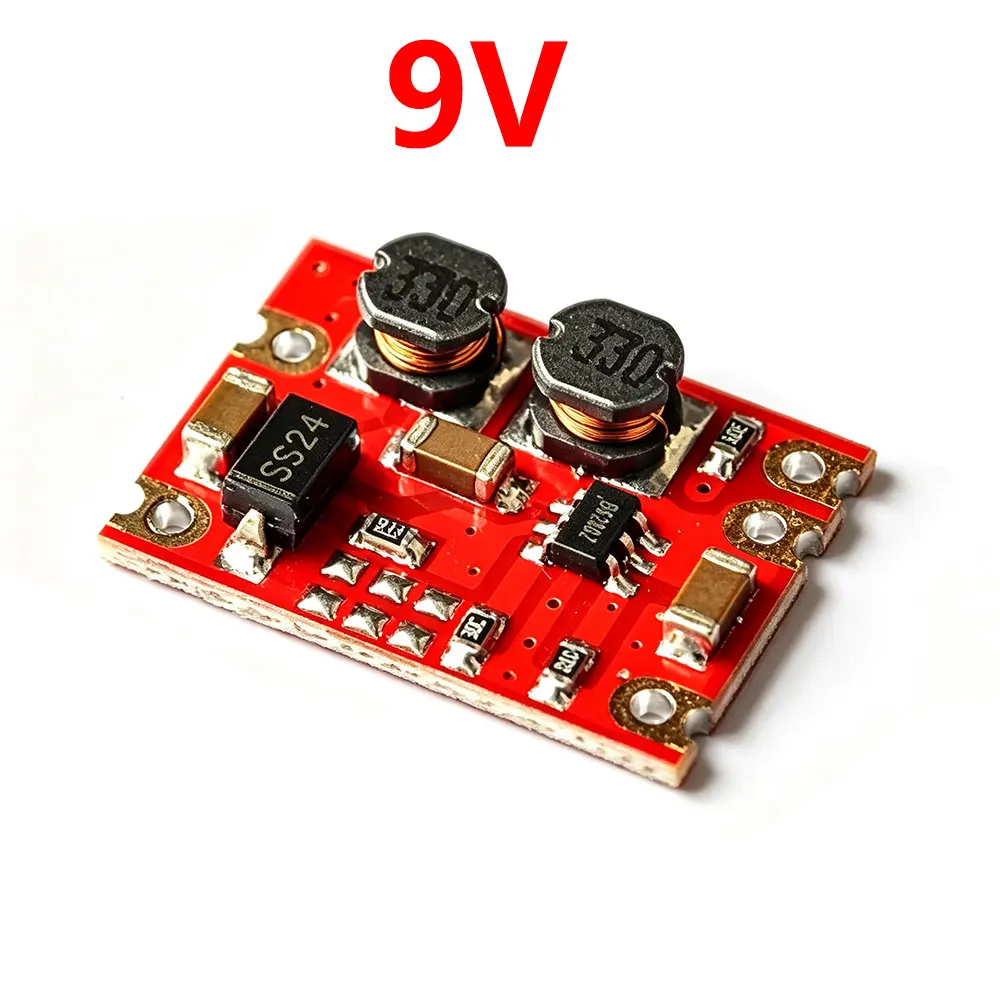

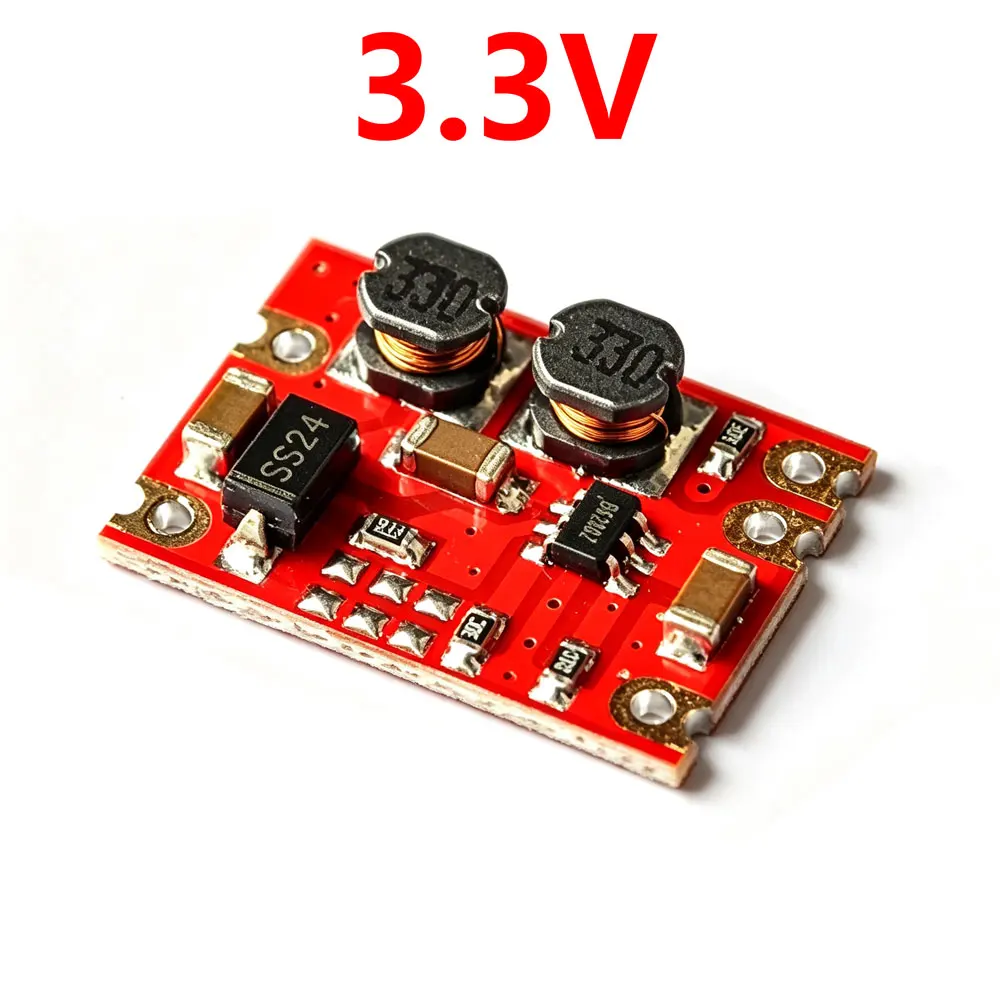

Product name: 1-5pcs S09 DC-DC Automatic Buck Boost Power Module Step Up Down Board Input 3-15V Output 3.3V/5V Electronic DIY PCB
Type: Electronic Components & Modules

Technical parameters

Type: Module
Origin: Mainland China
Condition: New
Application: Computer
is_customized: Yes
Supply Voltage: n/a
Dissipation Power: n/a
Operating Temperature: n/a
High-concerned chemical: none

For datasheets, package documents, compatible-part guidance, or other technical resources, contact WMSIC customer service. Availability is confirmed case by case.

Product Description:

The S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function. The maximum input voltage is 15VDC, the quiescent current is less than 200uA, the fixed output is 3.3V and the maximum output current is 600mA. Design work frequency of up to 1.2MHZ, high stability, cost-effective, all industrial-grade components, long working voltage drift-free, suitable for demanding applications, mass production.

Application:

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.

Specifications:

input voltage:2.5V-15V

output voltage:3.3V/4.2V/5V/9V/12V

output current:0.6A

conversion efficiency:75%

output ripple:<50mV

output accuracy:+-0.1V

working temperature:-20 - +85 celsius

relative humidity:20-90%

size:19mm*14mm*4.2mm

pcb layers:2 layers

current control:with cut off

cooling method:cooling nature

installation method:SMD or 2.54mm pin

production process:reflow

isolated:no

design aging standards:720 hours without trouble

production factory aging standards:48 hours

service life:35000 hours without trouble

inspection standards 3 times:all(Ex-factory test + in-store test)

fixed switching frequency:1200khz
